Vice:
BT240k

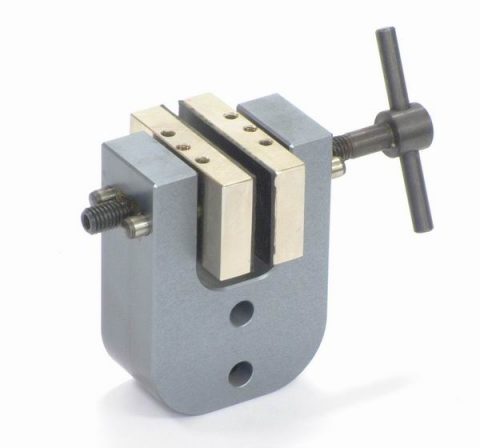

BT240k - Vice grip (1kN & 2.5kN)
– Temperature range: 0°C- +180°C(depending on jaws) Other temperature ranges possible on request
– Body: aluminum
– Scope of delivery: 1 pair(without jaws)
– Also as pneumaticversion available (see data sheet BT240k+ko) v
| Maximum force | Length | Width | Opening | Weight | Material | |
| BT240k | 2500.0N | 10.00mm | 0.29kg | Aluminum | ||
| BT240k-S20 | 1000.0N | 20.00mm | 0.33kg | Aluminum | ||
| BT240k-S30 | 1000.0N | 30.00mm | 0.32kg | Aluminum | ||
| BT240k-S50 | 1000.0N | 50.00mm | 0.57kg | Aluminum |
Standards
ASTM D3330: Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
EN 1939: Self adhesive tapes. Measurement of peel adhesion from stainless steel or from its own backing
EN ISO 527: Plastics – Determination of tensile properties
GOST 11262-80: Plastics. Tensile strength test method
ISO 1924-2: Paper and board – Determination of tensile properties
ISO 29862: Self adhesive tapes — Determination of peel adhesion properties
