Wedge:
BT243

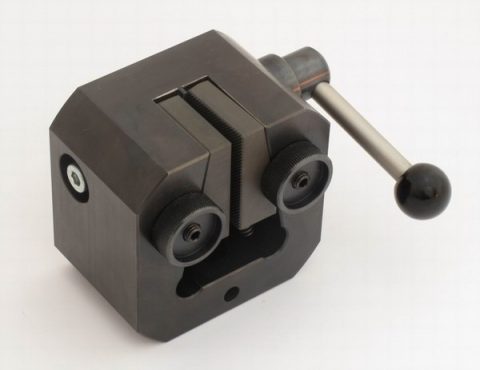

BT243 - Wedge grip (20 & 50kN)
| Maximum force | Opening | Weight | Material | Specimen width | |
| BT243-20 | 20000.0N | 20.00mm | 3.80kg | Steel | 35.00mm |
| BT243-50 | 50000.0N | 20.00mm | 6.75kg | Steel | 35.00mm |
Standards
ASTM D638: Standard Test Method for Tensile Properties of Plastics
EN 302-1: Adhesives for load-bearing timber structures – Test methods – Part 1: Determination of longitudinal tensile shear strength
ISO 6259-3: Thermoplastics pipes — Determination of tensile properties — Part 3: Polyolefin pipes
