Compression square:
BT36

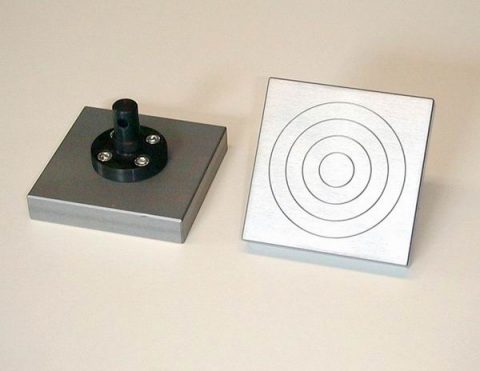

BT36 - Aluminum Compression plate
– Soft samples, cardboards, plastics, etc.
– Aluminum anodized
– Temperature range: -70°C – +180°C
– Max capacity depends on the size of coupling
– Scope of supply 1 pair
| Maximum force | Length | Width | Weight | Material | |
| BT36-50 | 50.00mm | 50.00mm | 0.20kg | Aluminum | |
| BT36-120 | 120.00mm | 120.00mm | 0.78kg | Aluminum | |
| BT36-350 | 350.00mm | 350.00mm | 6.60kg | Aluminum | |
| BT36-400 | 400.00mm | 400.00mm | 8.70kg | Aluminum | |
| BT36-400×600 | 400.00mm | 600.00mm | 13.40kg | Aluminum | |
| BT36-200 | 200.00mm | 200.00mm | 2.10kg | Aluminum | |
| BT36-120×180 | 120.00mm | 180.00mm | 1.14kg | Aluminum | |
| BT36-125×250 | 125.00mm | 250.00mm | 1.73kg | Aluminum | |
| BT36-100 | 100.00mm | 100.00mm | 0.52kg | Aluminum | |
| BT36-300 | 300.00mm | 300.00mm | 4.35kg | Aluminum | |
| BT36-150 | 150.00mm | 150.00mm | 1.23kg | Aluminum | |
| BT36-250 | 250.00mm | 250.00mm | 3.40kg | Aluminum | |
| BT36-150×300 | 150.00mm | 300.00mm | 2.35kg | Aluminum | |
| BT36-500 | 500.00mm | 500.00mm | 14.00kg | Aluminum |
Standards
ASTM C165: Standard Test Method for Measuring Compressive Properties of Thermal Insulations
EN 826: Thermal insulating products for building applications – Determination of compression behaviour
