Peeling:
BT50

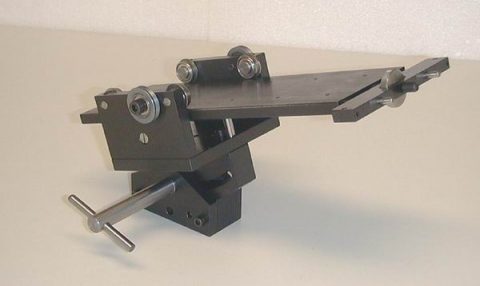

BT50 - Peel test fixture
Used to measure the bond strength. The sliding table provides a steady movement to maintain aconstant angle peel (the peel point remains at thecentre).
| Maximum force | Weight | Material | Specimen length | Specimen width | |
| BT50 | 10000.0N | 5.15kg | Steel, manganese phosphate coated | 250.00mm | 50.00mm |
| BT50+SW | 10000.0N | 7.10kg | Steel, manganese phosphate coated | 250.00mm | 50.00mm |
Standards
ASTM D3330: Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
EN 1939: Self adhesive tapes. Measurement of peel adhesion from stainless steel or from its own backing
ISO 29862: Self adhesive tapes — Determination of peel adhesion properties
EN 1939: Self adhesive tapes. Measurement of peel adhesion from stainless steel or from its own backing
ISO 29862: Self adhesive tapes — Determination of peel adhesion properties
