Vice:
BT56g

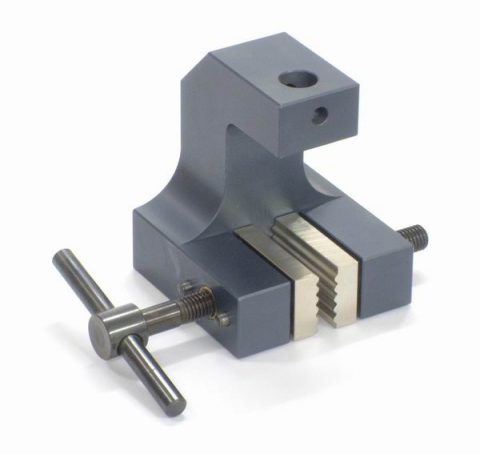

BT56g - Vice grip (5kN)
• Aversatile general purpose grip applicablefor plastics, textiles, paper, steelfoils, aluminum etc
• Jaws adjust to specimen by socket bearing
• Tensileforce: 5kN
• Temperature range: 0°C- +180°C(depending on jaws) Other temperature ranges possible on request
• Body: aluminum, anodized
• Scope of delivery: 1 pairwithout jaws
• Also as pneumatic grip available (see data sheet BT56g+ko) v
| Maximum force | Length | Width | Opening | Weight | Material | |
| BT56g | 5000.0N | 15.00mm | 1.04kg | Aluminum, anodized | ||
| BT56g-H200 | 5000.0N | 44.00mm | 1.70kg | Aluminum, anodized |
Standards
ASTM D3330: Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
EN 1939: Self adhesive tapes. Measurement of peel adhesion from stainless steel or from its own backing
EN 302-1: Adhesives for load-bearing timber structures – Test methods – Part 1: Determination of longitudinal tensile shear strength
EN ISO 527: Plastics – Determination of tensile properties
GOST 11262-80: Plastics. Tensile strength test method
ISO 1924-2: Paper and board – Determination of tensile properties
ISO 29862: Self adhesive tapes — Determination of peel adhesion properties
