Vice:
BT56k

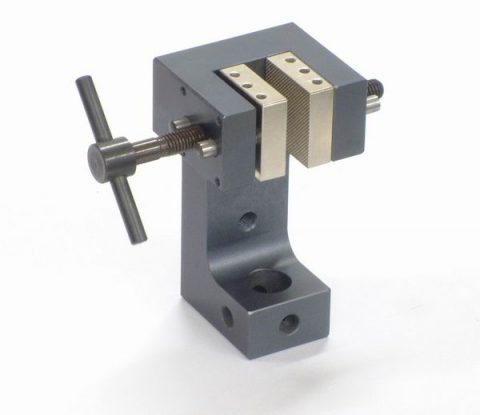

BT56k - Vice grip (1kN)
Aversatile general-purpose gripfor plastics, textiles, paper, metalfoil, aluminum, brass etc
Tensileforce: 1kN
Jaws pivotfor self alignment
Temperature range: 0°C- +180°C(depending on jaws)
Additional temperature ranges on request
Body made of aluminum, anodised
Weight per grip: 0.39kg eachwith jaws
Scope of supply: 1 pairwithout jaws
Also available as pneumaticversion (see datasheet BT56k+ko)
| Maximum force | Length | Width | Opening | Weight | Material | |
| BT56k | 1000.0N | 10.00mm | 0.39kg | Aluminum, anodised |
Standards
ASTM D3330: Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
EN 1939: Self adhesive tapes. Measurement of peel adhesion from stainless steel or from its own backing
EN ISO 527: Plastics – Determination of tensile properties
GOST 11262-80: Plastics. Tensile strength test method
ISO 1924-2: Paper and board – Determination of tensile properties
ISO 29862: Self adhesive tapes — Determination of peel adhesion properties
