Compression square:
COSJ14

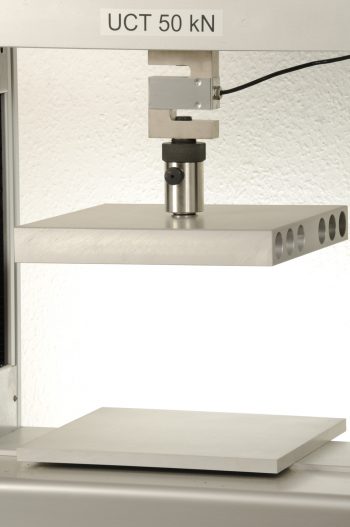

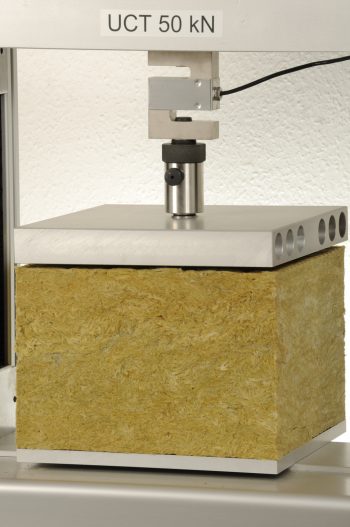

COSJ14 - Aluminium Compression plate with spherical joint
This set consists of two plates:
- Top plate with a spherical joint mounted close to the contact face, providing a minimum of side forces when aligning to the specimen. The top plate is 40 mm thick.
- Buttom plate which is 15 mm thick.
| Maximum force | Length | Width | Weight | Material | |
| COSJ14-300 | 50000.0N | 300.00mm | 300.00mm | 7.60kg | Aluminium |
Standards
ASTM C165: Standard Test Method for Measuring Compressive Properties of Thermal Insulations.
EN 826: Thermal insulating products for building applications – Determination of compression behaviour
EN 826: Thermal insulating products for building applications – Determination of compression behaviour
