Tension:
TEHS12

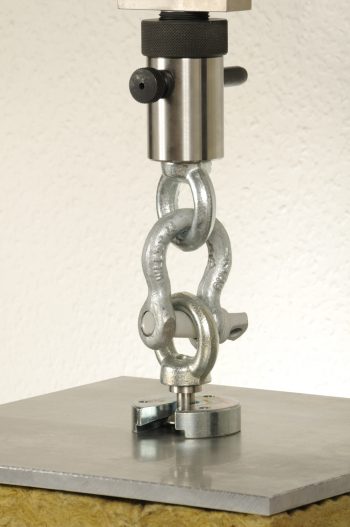

TEHS12 - Tension plates with mushroom hook and shackle
Plates with mushroom centre hook for delamination testing according to EN 1607.
Suiteble for mineral wool products.
Other plate sizes are available on request.
| Maximum force | Length | Width | Diameter | Weight | Material | Specimen length | Specimen width | |
| TEHS12-100 | 15000.0N | 100.00mm | 100.00mm | Aluminium | 100.00mm | 100.00mm | ||
| TEHS12-200 | 15000.0N | 200.00mm | 200.00mm | Aluminium | 200.00mm | 200.00mm | ||
| TEHS12-300 | 15000.0N | 300.00mm | 300.00mm | Aluminium | 300.00mm | 300.00mm |
Standards
EN 1607: Thermal insulation products for building applications – Determination of tensile strength perpendicular to faces
