Telescopic Diagonal Gauge (TDG)

Telescopic Gauge - TDG

Telescopic Diagonal Gauge

Telescopic gauge TDG

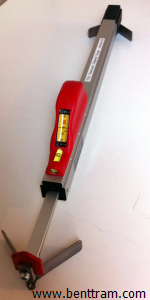

The Telescopic Diagonal Gauge is used for measuring the difference between the length of the diagonal lines of insulation slabs of for example mineral wool or EPS.

The swivelling angles at the ends of the gauges ensures an exact fit to the measured slabs for optimal precision. The turning of the angles is limited to the necessary interval, so the angles are always easy to place correctly on the slabs.

The easy-to-read display of the gauge makes it easy to read the gauge, even under difficult conditions.

Weight2 kg
Max stroke length3000 mm

EN 824Thermal insulating products for building applications - Determination of squareness

See also:
Deviation from squareness
